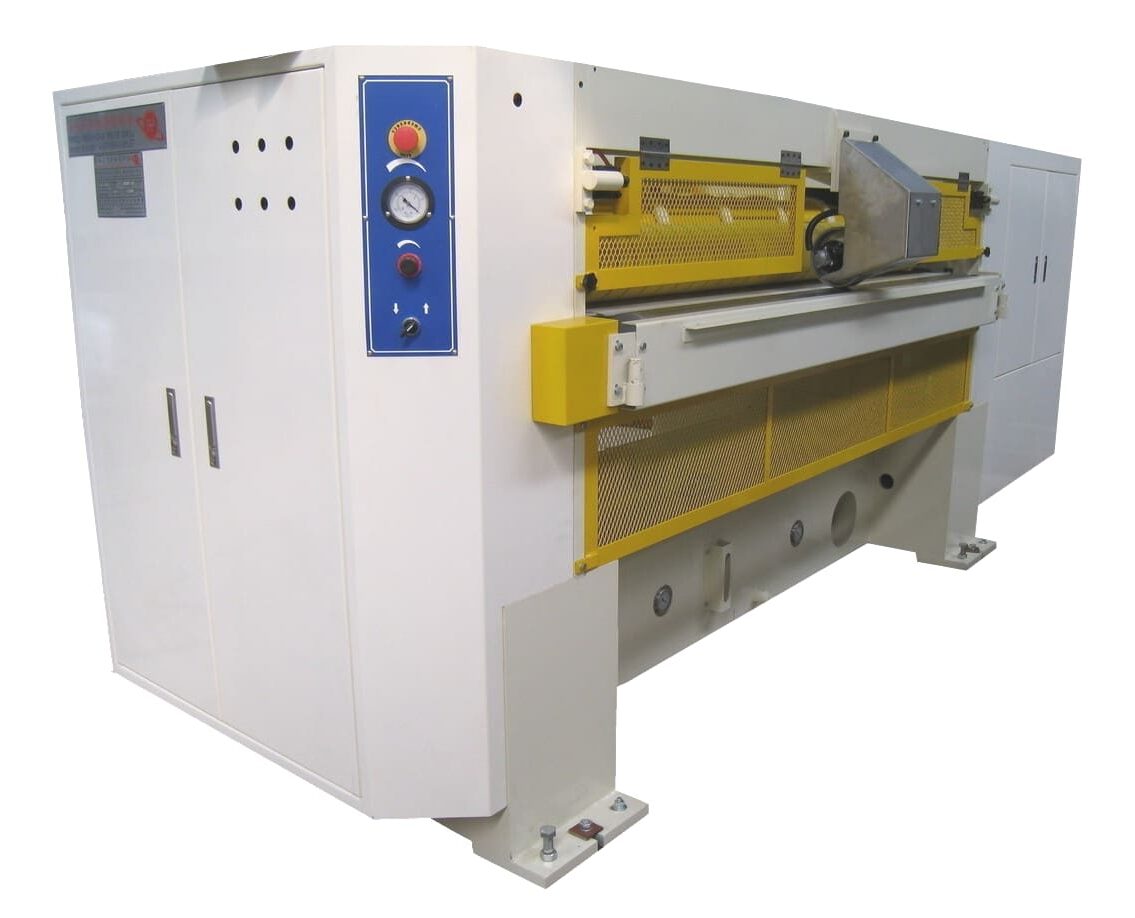

The Progressive Technology of CNC Cutters with Helical Blades: Revolutionising Cardboard Production:
Welcome, packaging professionals and corrugated cardboard enthusiasts! Today, we’re taking a deep dive into the cutting-edge world of corrugator production lines, focusing on the game-changing technology of CNC (Computer Numerical Control) cutters equipped with helical blades.
Get ready to explore how these marvels of engineering are reshaping the industry, one precisely cut sheet at a time.
The Need for Speed: Pushing Production Boundaries
In the fast-paced world of packaging, speed is king. CNC cutters with helical blades are the reigning monarchs, capable of slicing through cardboard at breathtaking speeds of up to 250 plus, meters per minute. To put this into perspective, that’s processing over 4 meters of material every second!
But why is this speed so crucial? In today’s just-in-time manufacturing environment, the ability to rapidly produce custom-sized cardboard sheets can make or break a company’s ability to meet tight deadlines and fluctuating demand. This high-speed capability allows corrugator plants to significantly increase their output without compromising on quality or precision.
The Engineering Marvel: Helical Blades Explained
At the heart of these high-speed cutters lies the innovative helical blade design. Unlike traditional straight blades, helical blades are curved and rotate as they cut, providing several significant advantages:
- Continuous Cutting Action: The helical design ensures that the blade is always in contact with the cardboard, resulting in a smoother, more consistent cut.
- Reduced Vibration: The progressive cutting action of helical blades significantly reduces vibration compared to straight blades, leading to cleaner cuts and less wear on the machine.
- Lower Cutting Force: The slicing motion of helical blades requires less force than the chopping action of straight blades, reducing strain on the motor and drive system.
- Improved Edge Quality: The clean, precise cuts produced by helical blades result in smoother edges, which is crucial for high-quality printing and downstream converting processes.
- Extended Blade Life: The distributed cutting action means that wear is spread more evenly along the blade, significantly extending its operational life.
Precision Engineering: Motors and Servo Control Systems
The impressive performance of modern CNC cutters isn’t just about the blades. It’s a symphony of advanced technologies working in perfect harmony. At the core of this system are cutting-edge motors and servo control AC drive systems.
Advanced Motor Technology
These cutters typically employ high-performance AC or brushless DC motors. These motors offer several advantages:
- High Torque-to-Inertia Ratio: This allows for rapid acceleration and deceleration, crucial for precise positioning at high speeds.
- Excellent Speed Control: Modern motors can maintain consistent speed under varying loads, ensuring cut accuracy even with fluctuating material thicknesses.
- Energy Efficiency: Advanced motor designs minimize energy loss, reducing operational costs and environmental impact.
Servo Control AC Drive Systems
The servo control system is the brain that directs the brawn of the motors. These sophisticated systems use closed-loop feedback to continuously monitor and adjust the cutter’s position, speed, and force. Key features include:
- Real-time Position Feedback: High-resolution encoders provide constant position data, allowing for micro-adjustments on the fly.
- Adaptive Control Algorithms: Advanced software can predict and compensate for variations in material properties or machine dynamics.
- Multi-Axis Synchronization: For cutters with multiple blades or axes of motion, the servo system ensures perfect coordination for complex cutting patterns.
Integration with Production Management Systems: The Smart Factory in Action
The true power of modern CNC cutters is fully realised when they’re integrated into a comprehensive production management system. This integration transforms the entire factory floor into a smart, interconnected ecosystem.
Connecting to the Digital Backbone
CNC cutters are equipped with advanced communication interfaces (e.g., Ethernet/IP, PROFINET, or OPC UA) that allow them to seamlessly connect with the factory’s central control system. This connectivity enables:
- Real-time Production Monitoring: Managers can track key performance indicators (KPIs) like throughput, cutting accuracy, and machine uptime in real-time.
- Dynamic Job Scheduling: The production system can automatically adjust cutting schedules based on incoming orders, material availability, and machine status.
- Quality Assurance Integration: Data from in-line quality control systems can be fed back to the cutter, allowing for automatic adjustments to maintain optimal cut quality.
- Predictive Maintenance: By analysing performance data, the system can predict when maintenance will be needed, reducing unplanned downtime.
- Energy Management: The central system can optimize energy usage across all connected machines, including the CNC cutters, to reduce overall power consumption.
Factory-Wide Automation Capabilities
The integration of CNC cutters into the broader production ecosystem enables advanced automation scenarios:
- Automated Material Handling: Robotic systems can be coordinated with the cutters to automatically load new cardboard rolls and remove cut sheets.
- Flexible Production Lines: The ability to quickly change cut patterns allows for rapid switching between different product sizes and styles.
- Closed-Loop Quality Control: Feedback from downstream processes can be used to fine-tune cutter parameters in real-time.
- Supply Chain Integration: The production management system can link with inventory and order management systems, enabling true demand-driven manufacturing.
The Future of Corrugated Cardboard Production
As we look to the future, the role of CNC cutters with helical blades in corrugated cardboard production is set to become even more critical. Emerging technologies promise to push the boundaries even further:
- AI and Machine Learning: Advanced algorithms could optimise cutting patterns in real-time, maximising material utilisation and minimising waste.
- Augmented Reality Maintenance: Technicians could use AR headsets for guided maintenance procedures, reducing downtime and improving first-time fix rates.
- Digital Twin Technology: Creating virtual replicas of CNC cutters could allow for advanced simulation and optimisation of cutting processes before implementationl on the factory floor.
Conclusion: Cutting into the Future
The humble cardboard box may seem simple, but the technology behind its production is anything but. CNC cutters with helical blades represent the pinnacle of precision, speed, and integration in corrugated cardboard manufacturing.
By combining advanced blade design with state-of-the-art motor and control systems, and seamlessly integrating with smart factory systems, these machines are not just cutting cardboard – they’re shaping the future of packaging production.
As we continue to push the boundaries of what’s possible in manufacturing, it’s clear that the corrugated cardboard industry is at the forefront of innovation.
The next time you receive a perfectly sized and cut cardboard box, take a moment to appreciate the incredible technology and engineering that made it possible.
It’s not just a box; it’s a testament to human ingenuity and the relentless pursuit of manufacturing excellence.
.
